Self Drilling Anchor Tools

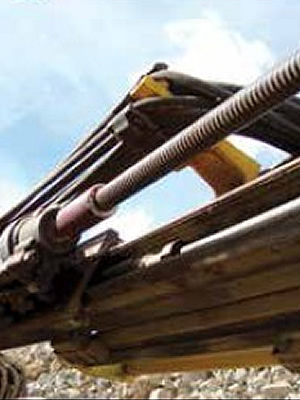

The self drilling anchor system consist of a hollow threaded bar with an attached drill bit that can perform drilling, anchoring and grouting in a single operation. The hollow bar allows air and water to freely pass through the bar during drilling to remove debris and then allow grout to be injected immediately after drilling is completed. Grout fills the hollow bar and completely covers the entire bolt. Couplings can be used to join hollow bars and extend the bolt length while nuts and plates are used to provide the required tension.

PDF Catalog DownloadFile Size: 838 KB
